GI And GL Material Door Frame Cold Roll Forming Machine PLC Control Servo Guiding Device
1. Product Description
| Description | offered specification |
| Material thickness | 0.7-1.2mm |
| Raw material | Galvanized coils yield strength ≤G250MPa |
| Forming speed | 8-15m/min |
| Decoiler | 3 Ton manual decoiler |
| Material of main shaft | 45# high quality steel |
| Levelling device | 7 roller levelling including 3 top rollers and 4 bottom rollers |
| Cutting | hydraulic cutting; quenching HRC58-62 |
| Motor power of hydraulic station | 4kw |
| Hydraulic station pressurre | 12Mpa |
| Tolerance | 6m+-1.5mm |
| Machine Frame | H Beam Steel |
2.Hydraulic Cutting
1. The cutter blade material: Cr12mov HRC58-62 degree
2. Blades number: 2 sets
3. Cutting after forming: Cut the sheet after roll forming to required length
4. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
5. Material of blade: CR12with heat treatment
6. Length measuring: Automatic length measuring
7. Tolerance of length: 6m+/- 0.5mm
3. After-sales service
Technical Support
Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.
Spare Parts
Promptly providing spare parts and wearing parts.
Upgrade
Improve technology and upgrade of equipments.
4. Description of door frame cold roll forming machine
LBM company is producing and offering outstanding quality range of door frame roll forming machines. These door frame roll forming machines can be customized as per customer requirement based. These door frame roll forming machines are mostly known for its stability and superiority. These door frame roll forming machines can be availed at best competitive prices.
LBM company is producing high quality door frame roll forming machines. Most of them are exported to Australia, Thailand, South Africa, Crotia, Sudan, Kuwait, Bangladesh, Turkey, Russia, etc.
5. Door frame sketch
6. Our service
Door frame roll forming machine Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video is provided to show how to install and operate.
After-sale Service:
We provide 12-hour online service for our customers. Phone: +86 15821208506
a .The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When technique men go to the buyer's place to debug the machines, the buyer should pay the
expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.
b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.

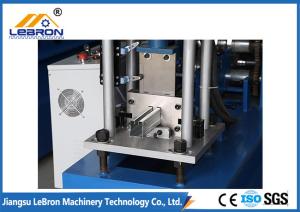

7. Picture
