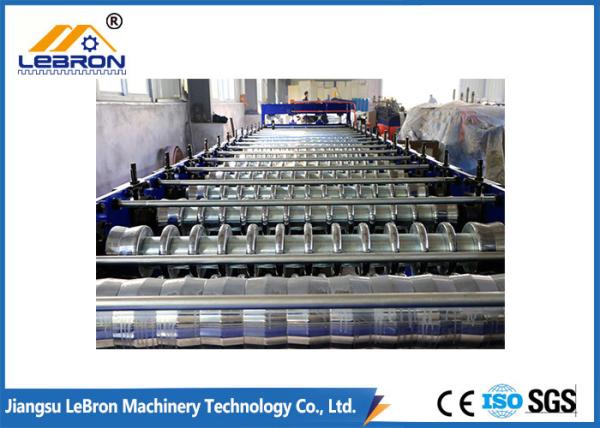

YX 18 76 838 Type Fully Automatic Corrugated Sheet Roll Forming Machine Siemens PLC
1. Description of Corrugated Sheet Roll Forming Machine
Steel corrugated roof sheet roll forming machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling, and cold-forming, automatically cut to the size and specification which is required, and output the finished panels.
This corrugated Roofing Sheet roll forming machine uses galvanized steel sheet, colored armor plate, or aluminum plate as the material plate. The products of it are used as the roof tile and wall panel outside of the building, to increase the beauty and durability of the roof tile and wall panel. This corrugated tile forming machine has no limit on processing length; you can set several different data on the computer control cabinet according to your own need. After pressing the button "Confirm", the machine can produce the panel automatically according to the set data. The molding plate surface smooth and not easy to be marked when it is being stamped.
Corrugated roof sheet roll forming machine is widely used nowadays in all around the world, it can produce different shapes and types of roof tile sheets, the forming speed of the manual roof tile machine can reach 16 meters per minute. Our corrugated roof sheet roll forming machines are customized, if you have the roof tile sheet drawings, please let me know, then we can produce the machine for you.
2. Technical parameters of Corrugated Sheet Roll Forming Machine
| No. | Item | Description | Remark |
| 1 | Raw Material | Color Steel Coil, Galvanized Steel Coil, Galvalume Steel Coil | |
| 2 | Yield strength | 235MPA-550MPA | |
| 3 | Raw Material Thickness | 0.3-0.8mm | |
| 4 | Raw Material Width | 914-1250mm | |
| 5 | Main Power | 5.5Kw | |
| 6 | Forming stations | 19stations | |
| 7 | Stands structure | Conjoint type OR Individual Type | |
| 8 | Machine Frame stand | 36# H Beam steel welded | |
| 9 | The thickness of Steel Frame | 18mm | can custom |
| 10 | Material of Roller | High grade 45# steel, Polished and coated with 0.05mm hard chrome | |
| 11 | Shaft Material | High grade 45# steel | |
| 12 | Diameter of shaft | Dia 70mm | can cutom |
| 13 | Hydraulic Cutter | Stop to cut | |
| 14 | Material of cutting dies | Cr12 steel | can custom |
| 15 | Hydraulic power for cutting | 4KW | |
| 16 | Cutting lengths and quantities | Clients can set required lengths and quantities through the touch screen on the PLC control box | |
| 17 | Control system | Panasonic PLC, Inverter, CHNT transformer, and Omron encoder | |
| 18 | Voltage | 380V/3Ph/50Hz | Can custom |
3. Main components of corrugated sheet roll forming machine
| No. | Item | Quantity | Remark |
| 1 | Manual decoiler | 1 Set | |
| 2 | Feeding guide | 1 Set | |
| 3 | Roll forming system | 1 Set | |
| 4 | Transmission system | 1 Set | |
| 5 | Hydraulic system | 1 Set | |
| 6 | Control system | 1 Set | |
| 7 | Hydraulic cutter | 1 Set | |
| 8 | Oil pump | 1 Set | |
| 9 | Run-out tables | 1 Set | |
4. FAQ:
Q1. What is your advantage?
A1: We have over 11 years of experience in roll-forming machine production. Experienced engineers and workers will be helpful for quality control.
Q2. Do you have after-sales support?
A2: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers' specifications, using top brand components.
Q4. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. We have rich experience in transporting.
Q5. How to visit your company?
A5: 1). Fly to Wuxi airport, we will pick you up.
2). Fly to Shanghai Airport: By high-speed train From Shanghai Hongqiao railway station to Wuxi railway station, then we can pick you up.
