PLC Control 15 M Per Min Door Frame Roll Forming Machine

Name: PLC Control 15 M Per Min Door Frame Roll Forming Machine
Brand: Lebron
Price: 10000 USD

China PLC Control 15 M Per Min Door Frame Roll Forming Machine factory

Brand Name : Lebron

Model Number : Door Frame Roll Forming Machine

Certification : ISO 9001: 2008

Place of Origin : Wuxi City, Jiangsu Province, China

MOQ : Negotiable

Price : USD10000~40000 per Set

Payment Terms : L/C, T/T

Supply Ability : 30 Sets per Month

Delivery Time : 35 days

Packaging Details : Export Packing with each machine tied and protected in the container

Name : Door Frame Roll Forming Machine

Working Speed : 12-15 m/min

Roller quantity : 18 rollers

Driven system : gear box drive

Main Power with reducer : 7.5KW

Hydraulic Station Power : 7.5KW

Contact Now

PLC Control 15 M/Min Door Frame Roll Forming Machine

Description

LBM factory is manufacturing the high-quality door frame machines, and they are mostly exported to the foreign countries, such as India, Angola, Ethiopia, Ghana, Zambia, Brazil, Argentina, Thailand, Philippines, Pakistan, Russia, etc.
This door frame roll forming machine can produce various kinds of roll forming metal door or window frames.

The punching also can be designed according to your needs. After roll formed by this door roll forming machine, the surface will be very smooth and beautiful without any scratch on the surface.

Technical Parameters

No.	Item	Description
1	Suitable Plate Material	Thickness: 1.5-2.0mm, Galvanized steel or blank steel
2	Working Speed	12-15 m/min
3	Roller quantity	18 rollers
4	Material of Roller	Gcr15, Quench HRC58-62 Plated Chrome
5	Material of Shaft	45# Advanced Steel (Diameter: 76mm), thermal refining
6	Driven system	gear box drive
7	Main Power with reducer	7.5KW
8	Cutting model:	Hydraulic Cutting Cr12mov
9	Material of Cutting blade	Cr12Mov, Quench HRC58-62
10	Hydraulic Station Power	7.5KW

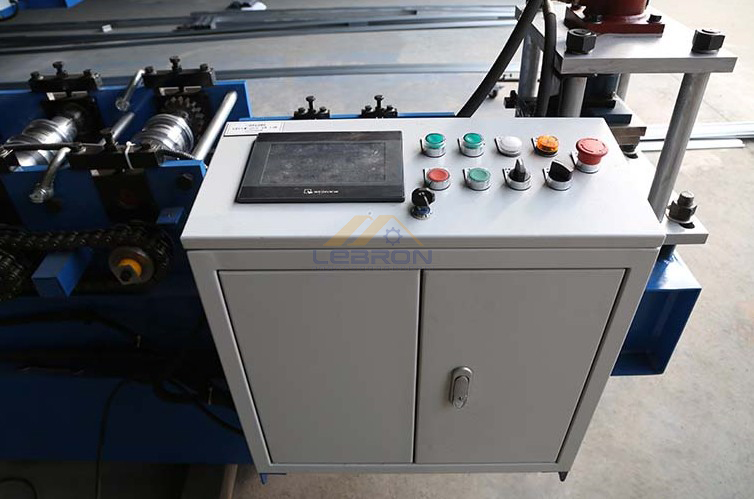

11	Operation system	Controlled by industry computer-PLC system.
12	PLC brand	Siemens with Japan English and Chinese Language
13	Touch Screen	Siemens Japan
14	Encoder	Omron, Japan
15	Electric parts	Schneider

After-Sale Service

Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video are provided to show how to install and operate.

After-sale Service:

We provide a 24-hour online service for our customers.
a . The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When the technique men go to the buyer's place to debug the machines, the buyer should pay the
expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.
b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.

Details

PLC Control 15 M Per Min Door Frame Roll Forming Machine

Product Tags:

15 M / Min steel door frame manufacturing machines

PLC Control steel door frame making machines

PLC Control 15 M Per Min Door Frame Roll Forming Machine Images
